散熱風扇 JHX17251
17251 尺寸/Size 172X51mm DC Axial Flow Fan

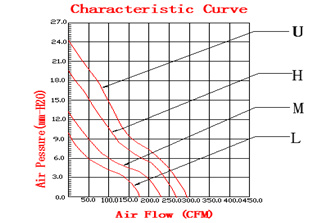

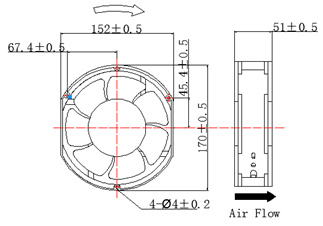

★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規格） |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Input Power 功率（W) |
Speed 轉速 （RPM) |
Air Flow 風量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Noise Level 噪音（dB-A） |
|
JHX17251X12VH |
Sleeve Ball |
12 |
6.0～13.5 |
3.75 |
45.00 |
4500 |
352.1 |
25.52 |
65.8 |
|
JHX17251X12HH |
1.90 |
22.80 |
3500 |
263.2 |
20.15 |
56.6 |
|||
|
JHX17251X12H |
1.22 |
14.64 |
3000 |
223.9 |
16.02 |
52.9 |
|||
|
JHX17251X12M |
0.80 |
9.60 |
2500 |
196.8 |
12.14 |
50.5 |
|||
|
JHX17251X12L |
0.41 |
4.92 |
2000 |
145.7 |
7.88 |
46.9 |
|||
|
JHX17251X24VH |
Sleeve Ball |
24 |
18～26.5 |
1.85 |
44.4 |
4500 |
352.1 |
25.52 |
65.8 |
|
JHX17251X24HH |
0.79 |
18.96 |
3500 |
263.2 |
20.15 |
56.6 |
|||
|
JHX17251X24H |
0.52 |
12.48 |
3000 |
223.9 |
16.02 |
52.9 |
|||
|
JHX17251X24M |
0.33 |
7.92 |
2500 |
196.8 |
12.14 |
50.5 |
|||
|
JHX17251X24L |
0.21 |
5.04 |
2000 |
145.7 |
7.88 |
46.9 |
|||
|
JHX17251X48VH |
Sleeve Ball |
48 |
36～58.6 |
0.95 |
45.6 |
4500 |
352.1 |
25.52 |
65.8 |
|
JHX17251X48HH |
0.43 |
20.64 |
3500 |
263.2 |
20.15 |
56.6 |
|||
|
JHX17251X48H |
0.28 |
13.44 |
3000 |
223.9 |
16.02 |
52.9 |
|||
|
JHX17251X48M |
0.20 |
9.60 |
2500 |
196.8 |
12.14 |
50.5 |
|||
|
JHX17251X48L |
0.11 |
5.28 |
2000 |
145.7 |
7.88 |
46.9 |
|||
